Description

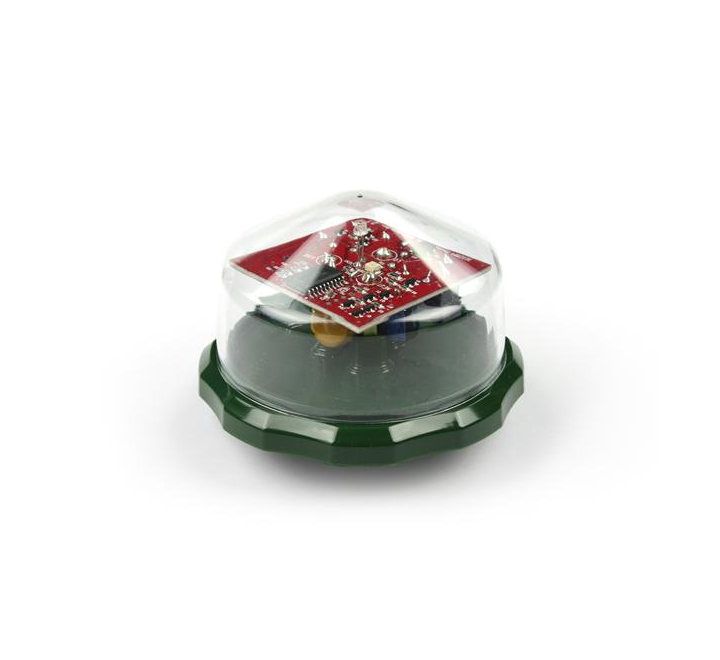

The CR CEX 1050 Part night photocell is the ideal
unit for applications where energy saving
is vital, but the cost and complexity of a
remote monitoring and control system is
not justified. It is cost effective to purchase,
simple to install and offers cost savings
from day one of operation.
Specification
Standard Switching Level: 35 Lux `On’ , 35 Lux `Off ‘.
Part-night switching : On dusk – Off 0.00 – On 06.00 – Off Dawn
Switching Differential: 1:0.5
Operating Voltage: 195 – 265 Vac, 50/60 Hz.
Maximum Lamp Load: 7 Amps
Circuit Power Consumption: < 0.25w.
Operating Temp Range: -20 / +70 Degrees C.
Warranty : 5 Years.
IP Rating : IP65 Dust and water sealed.
Standard Programme: Dusk `On’ / 24.00Hrs,`Off ‘ 05.30 Hrs `On ‘/Dawn `Off ‘
Manufacturing Standard: IS EN ISO 9001:2015
Photocontrol Standard: Applicable parts of BS5972:1980
UMSUG Code: Awaiting allocation
One-part nema socket mounted
