Description

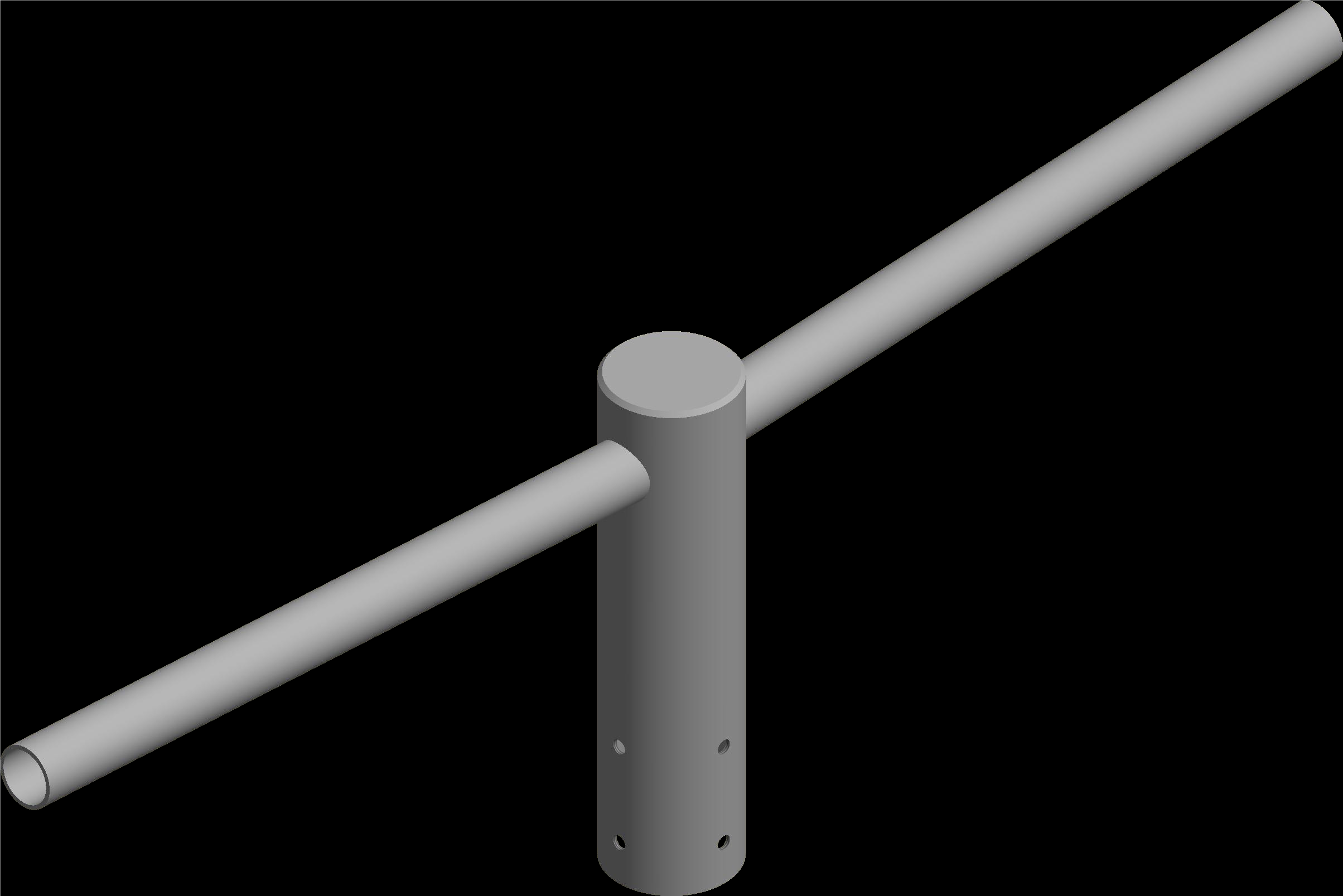

Galvanised double arm bracket for side entry lanterns. Manufactured to British industry standards with BS EN ISO 1461 galvanised finish. 89mm pot to fit externally over 76mm lamp post/lighting column shaft.
42mm spigot/shaft galvanised single arm lamp post bracket with outreach arm with a 500mm tubular projection and 5 degree uplift angle.
Dimensions:
- X: Spigot 500 MM Either side
- Y: M10 X 12 MM
- Z: 355 MM
- OD1: 89 MM
- OD2: 42 MM Tube
[vc_btn title=”Download datasheet” color=”blue” align=”left” i_icon_fontawesome=”fa fa-download” add_icon=”true” link=”url:%2Fwp-content%2Fuploads%2F2019%2F01%2FCRA-2-Double-Arm-Brackets.pdf|title:CRA%202%20Double%20Arm%20Bracket|target:%20_blank|”]
