Name: CRB 120 Hinged Door Feeder Pillar - 1000mm Wide
SKU: CRB120
Availability: InStock

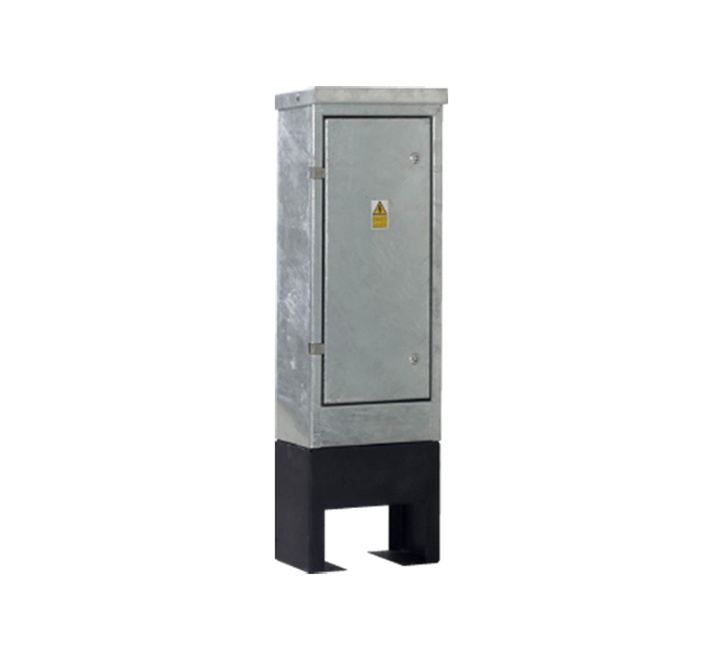

CRB 120 Hinged Door Feeder Pillar – 1000mm Wide

£765.35

Galvanised hinged door feeder pillar, H1250 mm x W1000 mm x D325 mm c/w 300 mm painted root 305 mm working depth.

3 mm galvanised mild steel c/w 12 mm
Backboard H1150 mm x W 980 mm.

[vc_btn title=”Download datasheet” color=”blue” align=”left” i_icon_fontawesome=”fa fa-download” add_icon=”true” link=”url:/wp-content/uploads/2019/06/CRB-120-FEEDER-PILLAR-data-sheet-line-drawing.pdf||target: _blank|”]

6 in stock (can be backordered)

SKU: CRB120 Category: Feeder Pillars

Description

Features

300 mm painted root 305 mm working depth.
3 mm galvanised mild steel c/w 12 mm
Space for electricity board meter, Cut Out and small distribution board.
Fitted with tri-head locks and 6mm Brass earth stud on pillar and door with 500mm earth strap.
Hinged door fitted with stainless steel block hinges and watertight seal.

[vc_btn title=”Download datasheet” color=”blue” align=”left” i_icon_fontawesome=”fa fa-download” add_icon=”true” link=”url:/wp-content/uploads/2018/11/CRB-120-Feeder-Pillar-data-sheet-line-drawing.pdf||target: _blank|”]

Additional information

Dimensions	1000 × 1250 cm
BS EN ISO	1461
Height	1250 mm
Width	1000 mm
Depth	325 mm
Overall Height	1550 mm
Working Depth	305 mm
Backboard Size	1150 mm x 980 mm
Weight	135 kg
