Name: CRB 70 Hinged Door Feeder Pillar - 450mm Wide
SKU: FP272
Availability: InStock

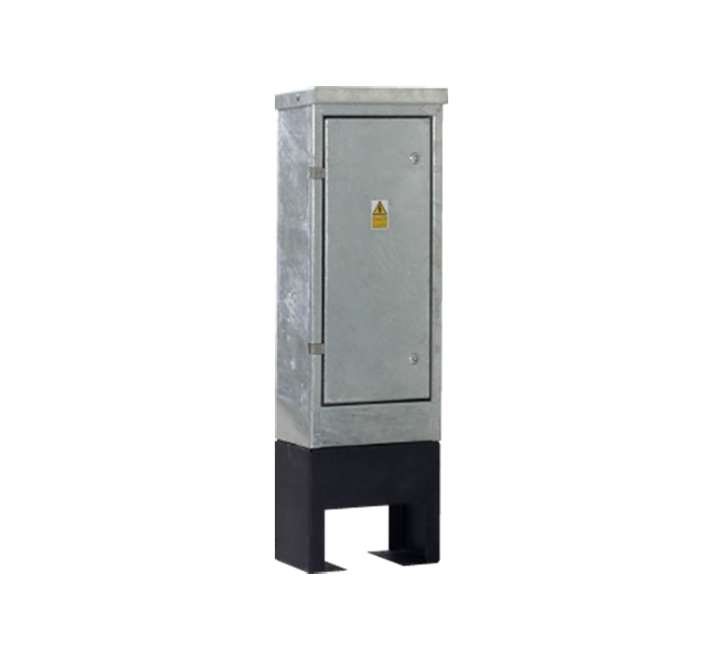

CRB 70 Hinged Door Feeder Pillar – 450mm Wide

£359.30

Galvanised hinged door feeder pillar, H950 mm x W450 mm x D250 mm c/w 300 mm painted root 230mm working depth.

3mm galvanised mild steel c/w 12mm
Backboard H850 mm x W430 mm

[vc_btn title=”Download datasheet” color=”blue” align=”left” i_icon_fontawesome=”fa fa-download” add_icon=”true” link=”url:/wp-content/uploads/2019/06/CRB-70-FEEDER-PILLAR-data-sheet.pdf||target: _blank|”]

11 in stock (can be backordered)

Description

Features

300 mm painted root
3mm galvanised mild steel c/w 12mm
Space for electricity board meter, Cut Out and small distribution board.
Fitted with tri-head locks and 6 mm Brass earth stud on pillar and door with 500 mm earth strap.
Hinged door fitted with stainless steel block hinges and watertight seal.

[vc_btn title=”Download datasheet” color=”blue” align=”left” i_icon_fontawesome=”fa fa-download” add_icon=”true” link=”url:/wp-content/uploads/2018/11/CRB-70-Feeder-Pillar-data-sheet-line-drawing.pdf||target: _blank|”]

Additional information

Dimensions	450 × 950 cm
BS EN ISO	1461
Height	950 mm
Width	450 mm
Depth	250 mm
Overall Height	1250 mm
Working Depth	230 mm
Backboard Size	850 mm x 430 mm
Weight	56 kg
