Name: CRB 90 Hinged Door Feeder Pillar - 650mm Wide
SKU: FP274
Availability: InStock

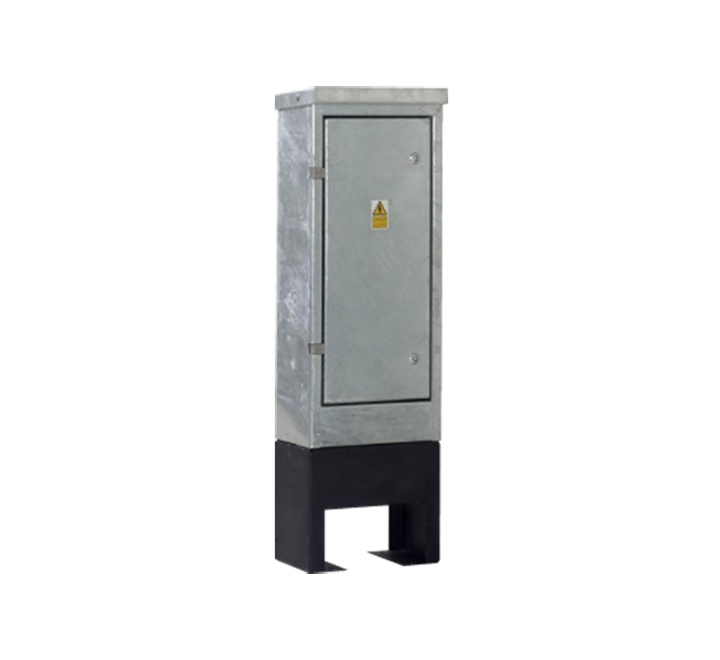

CRB 90 Hinged Door Feeder Pillar – 650mm Wide

£537.30

Galvanised hinged door feeder pillar, H1150 mm x W650mm x D300 mm c/w 300 mm painted root 270 mm working depth.

3 mm galvanised mild steel c/w 12 mm
Backboard H950 mm x W544 mm

[vc_btn title=”Download datasheet” color=”blue” align=”left” i_icon_fontawesome=”fa fa-download” add_icon=”true” link=”url:/wp-content/uploads/2019/06/CRB-90-FEEDER-PILLAR-data-sheet-line-drawing.pdf||target: _blank|”]

9 in stock (can be backordered)

Description

Features

300 mm painted root 270 mm working depth.
3 mm galvanised mild steel c/w 12 mm
Space for electricity board meter, Cut Out and small distribution board.
Fitted with tri-head locks and 6 mm Brass earth stud on pillar and door with 500 mm earth strap.
Hinged door fitted with stainless steel block hinges and watertight seal.

[vc_btn title=”Download datasheet” color=”blue” align=”left” i_icon_fontawesome=”fa fa-download” add_icon=”true” link=”url:/wp-content/uploads/2018/11/CRB-90-Feeder-Pillar-data-sheet-line-drawing.pdf||target: _blank|”]

Additional information

Dimensions	650 × 1150 cm
BS EN ISO	1461
Height	1150 mm
Width	650 mm
Depth	300 mm
Overall Height	1450 mm
Working Depth	280 mm
Backboard Size	950 mm x 544 mm
Weight	87 kg
